Hawk Eye Technology: How This Game-Changing System Works to Guarantee Fair Play
Have you ever watched a high-stakes tennis match where the ball grazed the line, or a cricket game where the umpire's decision seemed questionable? In the modern sporting world, split-second decisions often determine victory or defeat, leading to immense pressure on officials. Thankfully, we now rely on an incredible piece of engineering known as Hawk Eye Technology.
This sophisticated system has revolutionized fairness and accuracy across multiple major sports, turning human error into a thing of the past. But what exactly is this digital marvel, and how does it manage to track objects moving at blistering speeds with millimeter precision? Let's dive deep into the mechanics, history, and profound impact of Hawk Eye Technology.
What Exactly is Hawk Eye Technology?
At its core, Hawk Eye Technology is a complex computerized system used to visually track the trajectory of a ball or other moving objects. Developed by Dr. Paul Hawkins and initially patented in 2001, it uses a unique combination of high-speed cameras, synchronization software, and advanced mathematical algorithms.
Its primary goal is to resolve controversial calls instantly and accurately, acting as the ultimate virtual umpire. While many people associate the technology primarily with tennis challenges, its application extends far beyond the baseline, influencing crucial decisions in cricket, football, and even snooker.
The beauty of the system lies in its ability to predict and recreate the path of the ball, presenting the results in a clear, 3D graphical representation for viewers and officials alike. This immediate, verifiable feedback has significantly reduced disputes and enhanced the integrity of professional competition.
The Physics and Principles Behind Hawk Eye
Understanding how Hawk Eye achieves such incredible accuracy requires a look into the technology's setup and computational power. It's not just one camera capturing the moment; it's a synchronized network working together.

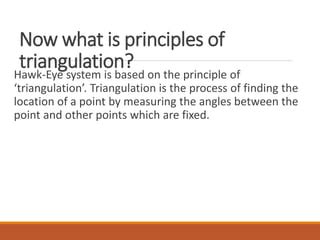

The system relies heavily on established principles of physics, notably trigonometry and the concept of triangulation, allowing the computer to determine the exact location of the ball at any given millisecond.
The Camera Setup and Data Collection
To capture every angle, Hawk Eye installations typically utilize between six and ten specialized, high-frame-rate cameras positioned strategically around the playing field. These cameras are crucial because they capture thousands of images per second, far exceeding the capabilities of the human eye or standard broadcast equipment.
Before any match begins, the system undergoes a rigorous calibration process. This involves feeding the precise dimensions of the court or pitch into the central processing unit (CPU). This meticulous setup ensures the system knows exactly where every point of the playing surface is located in 3D space.
As the ball moves, each camera feeds synchronized data back to the central computer. The computer then processes the visual information, specifically looking for the shape and color of the ball against the background. If one camera temporarily loses sight of the ball (due to an obstruction, for example), the redundant coverage provided by the other cameras ensures continuous tracking.
Triangulation and Ball Trajectory Calculation
The mathematical genius of Hawk Eye Technology rests on triangulation. By receiving multiple simultaneous views of the ball from cameras positioned at different angles, the CPU can pinpoint the ball's precise location in three dimensions.

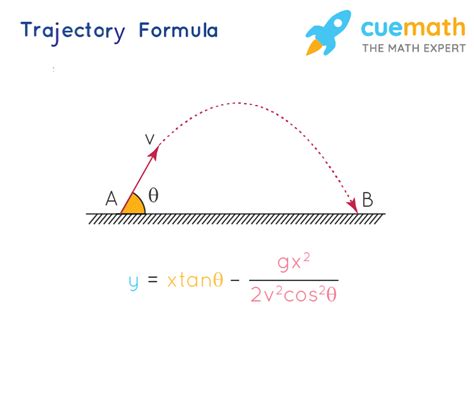

This process is repeated constantly throughout the ball's flight. The data points collected are then used to calculate the ball's trajectory, speed, and expected landing position, accounting for variables like spin and air resistance.
The process generally follows these steps:
- **Identification:** The computer identifies the ball in the video feeds from at least three separate cameras simultaneously.
- **Position Mapping:** Using calibration data, the system maps the 2D coordinates from the camera feeds onto the pre-defined 3D playing space.
- **Prediction Modeling:** Based on the immediate velocity and trajectory observed, the system models the path the ball would follow, even predicting where it would land if allowed to continue its flight.
- **Reconstruction:** When a challenge is requested, the system quickly generates the accurate, photorealistic representation of the ball's journey and impact point.
Hawk Eye's Impact Across Different Sports
While the underlying technology is similar, its application is subtly adapted to meet the specific requirements and speeds of each sport.
Tennis: The Umpire's Safety Net
Tennis is arguably where Hawk Eye Technology first gained global recognition. Since its introduction in major tournaments, it has fundamentally changed how players approach line calls. Players are granted a limited number of challenges per set, adding a strategic element to disputing calls.
The system quickly determines if a ball is "in" (if any part of the ball touches the line) or "out" (if the ball misses the line entirely). This instantaneous, incontrovertible proof has eliminated the frustration associated with human error in officiating, significantly smoothing out gameplay.
Cricket: DRS and Decision Review
In cricket, Hawk Eye forms a vital component of the Decision Review System (DRS). Its most famous use is in judging leg-before-wicket (LBW) decisions.
The system predicts the trajectory of the ball after it strikes the batsman's pad, determining whether the ball would have gone on to hit the stumps. This prediction is crucial because it helps judges analyze factors that are invisible to the naked eye, such as minute deviations caused by spin or wind.
Football (Soccer) Goal-Line Technology
While other technologies like GoalRef exist, Hawk Eye's system has also been adopted for goal-line technology (GLT) in football. The requirement here is simple but critical: did the entire ball cross the line? Since 2013, this technology has been used in major leagues and FIFA tournaments.
If the ball fully crosses the goal line, the referee receives an immediate notification on a dedicated wrist device, eliminating the classic "did it cross?" debate and ensuring that crucial goals are never incorrectly disallowed or awarded.
Advantages and Limitations of the System
The benefits of Hawk Eye are widely celebrated, but like any technology, it is not without its operational limitations and challenges.
Key Advantages:
- Increased Accuracy: Hawk Eye boasts an accuracy rate of 3.6 millimeters, far surpassing human capability.
- Enhanced Fairness: It standardizes judging criteria, ensuring consistency and integrity in match results.
- Spectator Engagement: The clear, instant replay graphics add a thrilling layer of engagement for television viewers and stadium crowds.
- Pressure Reduction: It alleviates significant pressure on human officials, allowing them to focus on other aspects of the game.
Key Limitations and Challenges:
- Cost and Infrastructure: The required installation of multiple high-speed cameras, synchronization hardware, and proprietary software makes it extremely expensive to implement, limiting its use primarily to professional elite sports.
- Calibration Dependency: The system is only as good as its initial calibration. Any minor errors in the setup process can lead to systemic inaccuracies during the match.
- Occasional Error Margin: While highly accurate, the system operates on a statistical model and is usually quoted with a small margin of error (e.g., ±5 mm). In extremely rare, borderline cases, this margin could still be consequential.
- Visual Obstruction: In dense environments, especially in indoor sports or areas where players obstruct the cameras, continuous tracking can occasionally be momentarily disrupted.
Conclusion
Hawk Eye Technology stands as a monumental achievement in sports engineering. By seamlessly blending high-speed photography with complex computational modeling, it has redefined what constitutes a fair decision in modern competition. From challenging close calls in tennis to ensuring correct LBW verdicts in cricket, the system guarantees a level of objectivity previously unattainable.
Although it requires significant investment and continuous recalibration, the peace of mind and enhanced integrity offered by Hawk Eye Technology far outweigh the costs. As technology continues to evolve, we can expect this game-changing system to integrate even more deeply into the fabric of sports broadcasting and officiating worldwide, safeguarding the spirit of competition for years to come.
Frequently Asked Questions (FAQ) About Hawk Eye Technology
- How accurate is Hawk Eye Technology?
- The system is generally considered accurate to within 3 to 5 millimeters. This incredible precision makes it the gold standard for objective analysis in sports.
- Can Hawk Eye track balls that bounce?
- Yes, absolutely. Hawk Eye models the trajectory of the ball throughout its flight, using physics to calculate its path, speed, and point of impact, whether airborne or after a bounce.
- Is Hawk Eye Technology only used in tennis?
- No. While most famous for tennis line calls, the technology is also vital in cricket (for DRS and LBW reviews), football (goal-line technology), and other sports like snooker.
- Why don't all tournaments use Hawk Eye?
- The main barrier is cost. Installing and maintaining the required network of high-speed cameras, synchronization hardware, and dedicated computing staff is very expensive, limiting its availability mostly to high-level professional tournaments and venues.
- Who owns Hawk Eye Technology?
- Hawk-Eye Innovations, the company that developed the system, was acquired by the major technology giant Sony Corporation in March 2011.
